Multi-Agent System Architecture: Building Scalable AI Development Workflows

AI systems are becoming more complex. What used to be a simple model-and-prompt setup now often includes retrieval, tools, memory, monitoring, and workflow logic. As teams move from experiments to real products, the system begins to behave less like a single assistant and more like an application with interconnected components.

This is where single-agent design begins to show its limits. One agent is expected to interpret requests, gather context, use tools, validate outputs, and decide what should happen next. That may work in small experiments, but in production, it often creates bottlenecks, limits specialization, and makes the workflow harder to scale.

That is why more teams are moving toward multi-agent system architecture. Instead of asking one agent to handle everything, the workflow is split across several agents with clear roles. This fits naturally with modern agentic workflows, where planning, execution, review, and coordination are handled as separate but connected steps.

A multi-agent system architecture is a design model in which multiple autonomous agents work together toward a shared goal. Each agent is responsible for part of the workflow, and the system coordinates their actions so they can operate as one larger process.

This is the main difference from a single-agent system. In a single-agent design, one agent attempts to handle the entire task from start to finish. In a multi-agent setup, those responsibilities are divided into smaller units. The goal is not complexity for its own sake. Rather, the goal is to enable coordinated execution through a role-based structure.

In a software delivery workflow, one agent might plan the work, another gather context, another generate code, and another review the result. The same logic applies to a multi-agent research system architecture, where finding information, evaluating it, and producing an answer are better handled as separate roles.

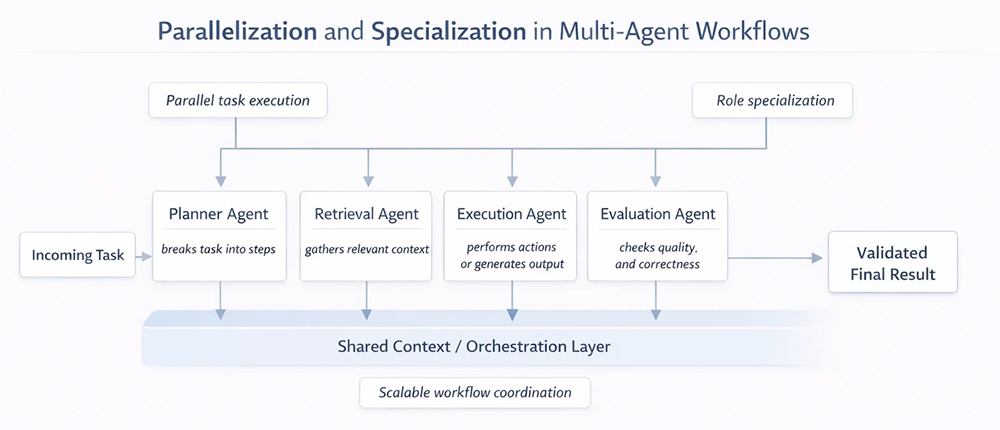

Scalability is not only about handling more traffic. It is also about building systems that can grow in complexity without becoming difficult to maintain. A multi-agent design helps in a few important ways.

Better parallelization

Some work can happen at the same time. While one agent retrieves context, another can prepare a task plan. While one generates an output, another can validate part of the result. This reduces idle time and can improve overall workflow speed.

Stronger specialization

Planning is different from execution. Validation is different from retrieval. When one agent keeps switching between all these modes, quality tends to become uneven. Specialized agents make the system more predictable.

Easier maintenance

When a single-agent workflow starts failing, the root cause is often hard to isolate. Was the prompt weak? Was the context overloaded? Did the tool call fail? In a multi-agent design, those concerns are easier to separate. Teams can improve one part without rewriting everything else.

More flexible system growth

AI products rarely stay simple. New tools are added. New checks are introduced. New use cases appear. A well-structured multi-agent AI system architecture makes that growth easier because the workflow is already modular. New agents can be introduced without breaking the whole design.

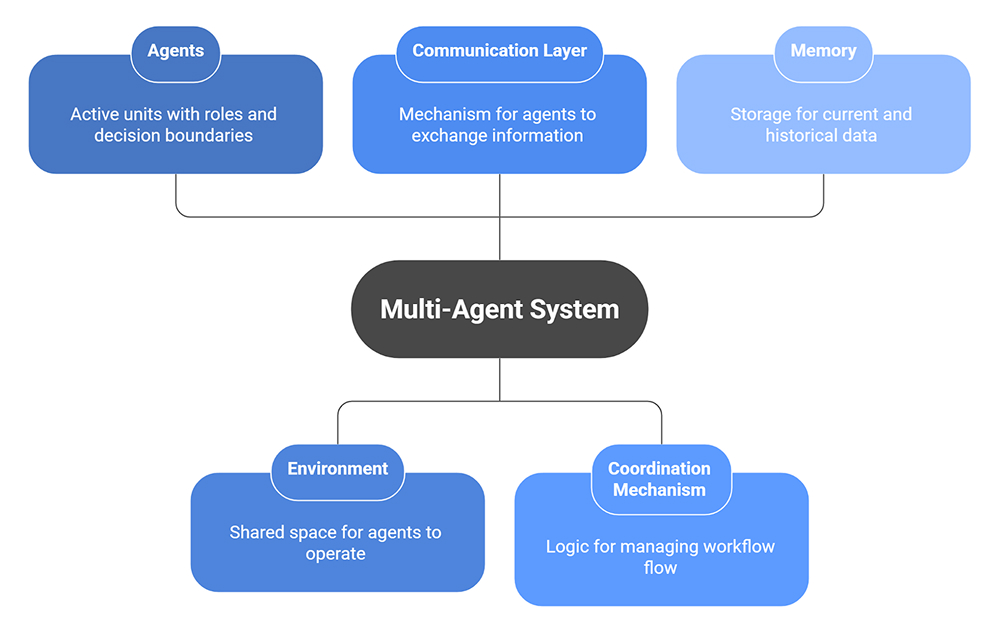

A scalable multi-agent workflow usually depends on a few basic components. These pieces may look different across systems, but the underlying ideas stay similar.

1. Agents

Agents are the active units in the architecture. Each agent has a role, access to some tools or context, and a limited decision boundary. Good agent design starts with clarity. If an agent’s purpose is vague, the workflow becomes vague too.

2. Environment

Agents need a shared space to operate in. This may be a task queue, a database, a memory layer, or a shared state object. The environment provides agents with the information they need and a place to store results.

3. Communication layer

Agents must exchange information somehow. This can happen through direct calls, messages, queues, shared memory, or events. The communication layer needs to be explicit. Hidden assumptions between agents usually lead to fragile behavior later.

4. Coordination mechanism

Some part of the system decides how work flows from one step to the next. In some designs, this is a central orchestrator. In others, agents respond to events and coordinate more independently. The right model depends on the workflow, but in both cases, the control logic should be easy to trace.

5. Memory

Most useful systems need memory, but not all memory should behave the same way.

• Short-term memory helps agents manage the current workflow.
• Long-term memory stores reusable knowledge, policies, prior results, or historical context.

The important part is not just storing information. It is deciding what should be remembered, who can access it, and when it should be updated.

Architecture diagrams are helpful, but diagrams alone do not make systems scalable. The design principles behind the system matter just as much.

Modularity

Each agent should be easy to replace or improve. If changing one role forces changes across the entire workflow, the architecture is too tightly connected.

Loose coupling

Agents should rely on clean contracts, not on hidden internal assumptions. No agent should need to know another agent’s internal reasoning format to work correctly.

Role specialization

Agents need clear responsibilities. A planner should plan. An evaluator should evaluate. The more overlap you allow, the harder it becomes to debug workflow problems or measure performance.

Observability

This part is often underestimated. Multi-agent systems require robust tracing, logging, and workflow visibility. Teams should be able to see which agent handled a task, what context it received, and what happened next. Without that visibility, multi-agent systems become difficult to trust in production.

Iterative expansion

One common mistake is starting with too many agents. A better approach is to begin with a small set of roles, observe where the workflow breaks down, and then expand only where specialization adds real value.

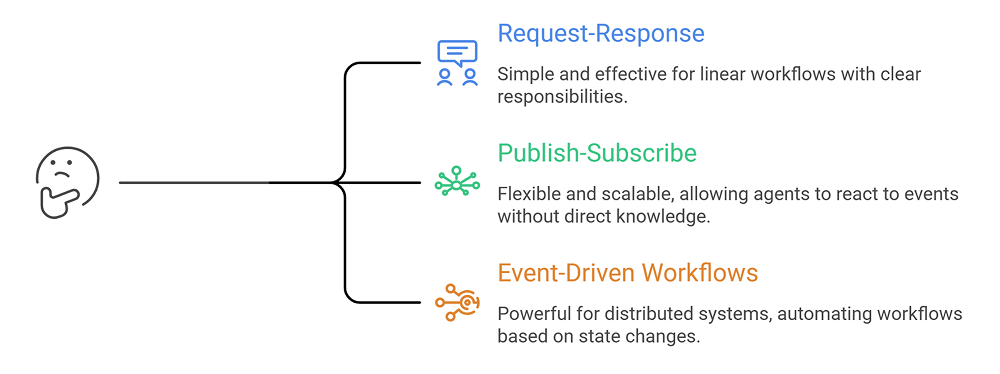

Agents need a way to coordinate, and the communication model has a big effect on system behavior.

Request-response

This is the simplest pattern. One agent asks another for a result and waits for the answer. It works well when the workflow is linear and responsibilities are clear. The downside is that it can create blocking chains if too many steps depend on direct handoffs.

Publish-subscribe

In this pattern, agents publish events and other agents react to the events they care about. This gives the system more flexibility. A completed task can trigger logging, validation, notification, or downstream execution without the original agent needing to know every listener.

Event-driven workflows

Event-driven design is useful when workflows span services, queues, or distributed infrastructure. A state change can automatically trigger the next step. This is powerful, but it also requires discipline. Events must be clear, retries must be safe, and duplicate handling needs to be considered from the start.

In practice, the best communication pattern is usually the simplest one that meets the workflow’s real needs. Overdesigned coordination tends to create more problems than it solves.

Multi-agent systems introduce structure but also new engineering problems.

One challenge is latency. More agents can mean more handoffs, more waiting, and more coordination overhead. If every task moves through several stages, execution time can grow quickly unless parts of the workflow run in parallel.

Another challenge is fault tolerance. Agents can fail because of model errors, tool failures, timeouts, missing context, or weak orchestration logic. A reliable system needs fallback paths. That may include retries, alternate execution routes, degraded modes, or human review for sensitive cases.

A third challenge is state consistency. If several agents read and write shared state, ownership rules must be clear. Otherwise, the system starts making decisions on stale or conflicting information.

Rather than guessing how well the workflow performs, teams should track a small set of useful metrics:

• Task completion rate
• Average workflow latency
• Failure rate by agent
• Retry frequency
• Tool success rate
• Output quality score
• Cost per completed task

These metrics make system behavior visible. They also help teams decide whether the architecture is genuinely improving performance or just adding more moving parts.

For teams trying to make these systems measurable in practice, this is also where tooling matters. Platforms like Milestone help connect delivery flow, code stability, and GenAI usage to a clearer view of performance and ROI. That makes it easier to judge whether multi-agent workflows are improving outcomes or just adding complexity.

Multi-agent systems are not always the right answer. In some cases, a simple single-agent design is still the better choice. However, as AI products grow to include planning, retrieval, execution, validation, and changing business logic, multi-agent architecture offers a more practical foundation. It helps teams split complex workflows into clear responsibilities, improve maintainability, and scale with less friction. That is why multi-agent systems are becoming more important in modern AI development. Their real value is not added complexity. It is a better structure, better coordination, and a more sustainable way to build AI systems that need to grow over time.

1. What are the key components of a multi-agent system architecture?

The main components are agents, a shared environment or state layer, a communication layer, a coordination mechanism, and memory. Together, these parts allow specialized agents to collaborate on a shared goal while keeping the workflow modular, observable, and easier to scale.

2. How do you design multi-agent systems for scalable AI development?

Start with a small number of agents and define clear responsibilities for each one. Use modular design, clean communication paths, and strong observability. Expand only when the workflow shows a real need for more specialization, rather than adding agents too early.

3. What communication patterns work best for multi-agent architectures?

Request-response works well for direct and simple handoffs. Publish-subscribe is useful when multiple downstream actions depend on the same event. Event-driven workflows are effective for larger distributed systems, but they need careful handling of retries, failures, and duplicate events.

4. How do you handle failure and fault tolerance in multi-agent systems?

The main mechanism is the use of state ownership, timeouts, retries, and fallback paths. It is best to segregate failures so that an underperforming agent does not bring down the entire system. In cases where the system detects an underperforming agent, adding alternative paths to the fallback mechanisms to execute the main task, or establishing a form of human intervention, can also ensure time and effort are not wasted.

5. What metrics should you track to measure multi-agent system performance?

Measuring completion rate, latency, failure rate by agent, retry rate, tool failure, output quality, and cost per workflow gives the team the most valuable insight into whether the system design adds reliability/efficiency, or just adds complexity.
